CLEARANCE
AWP02-120W-40K-347V
2 reviews

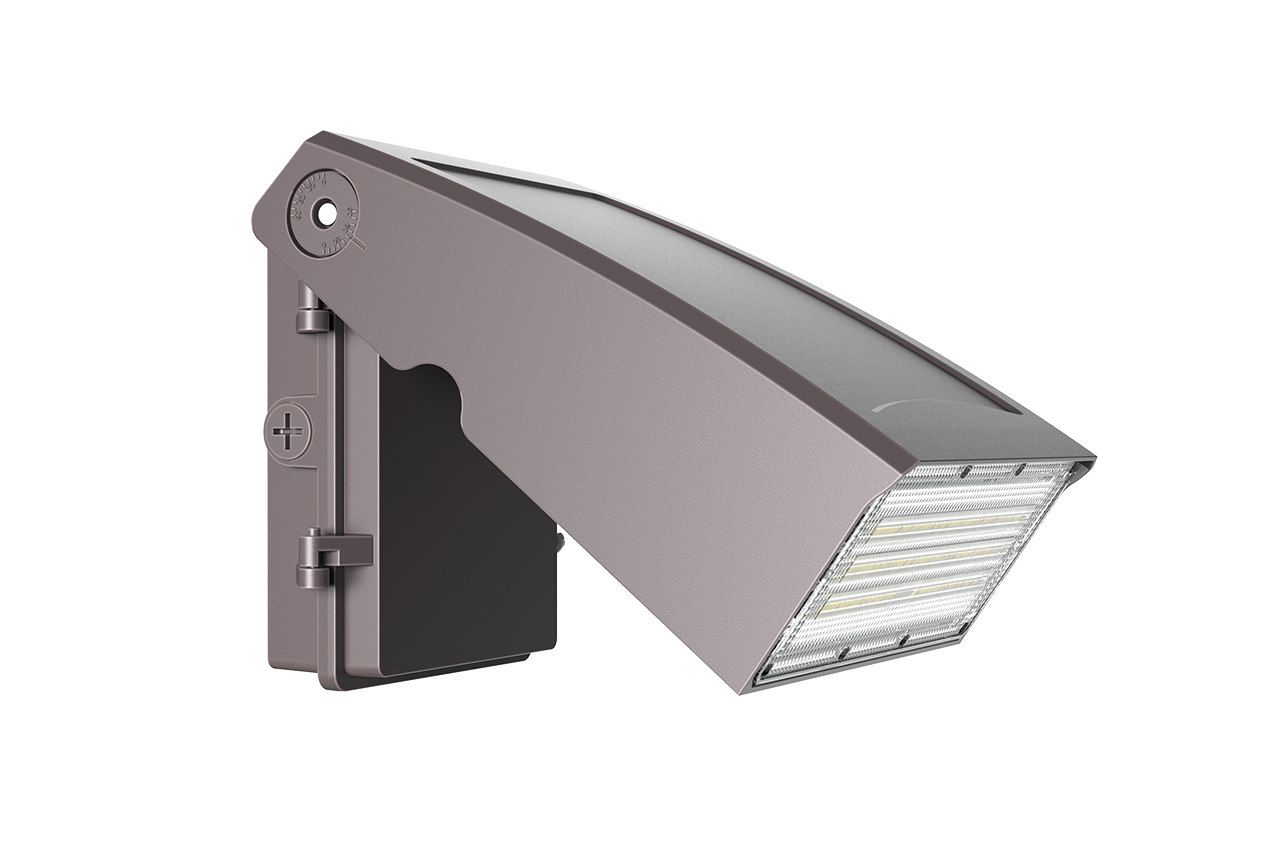

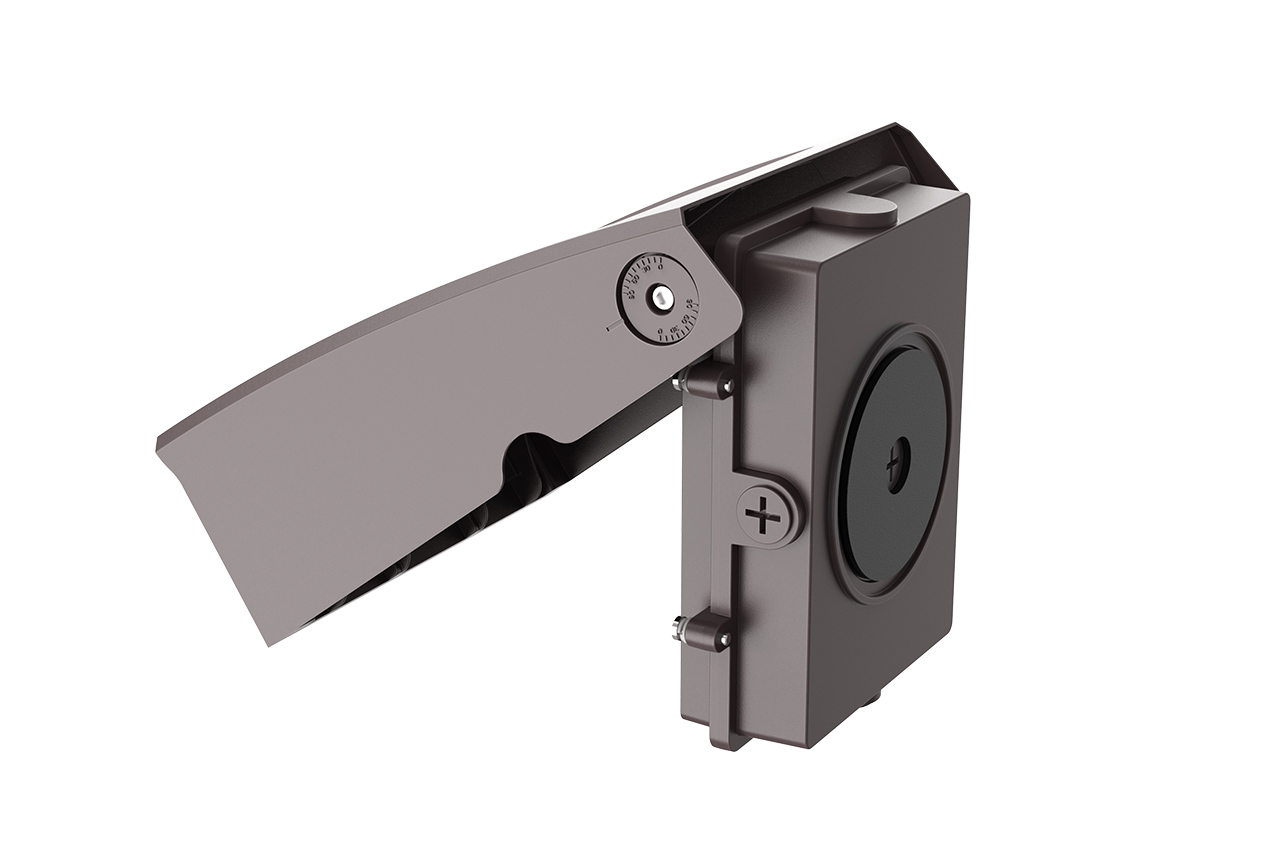

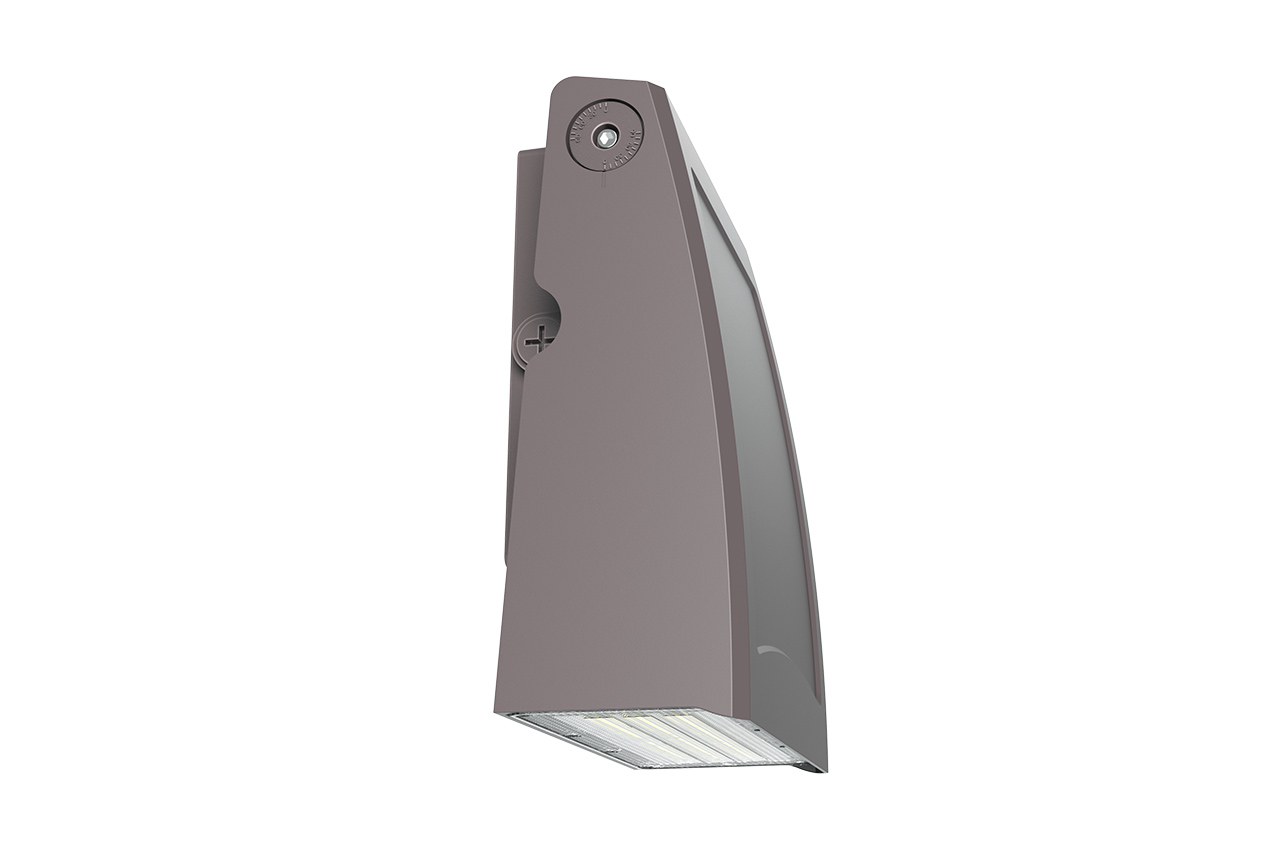

AWP02 series Wall Pack
120W | 4000K | 347V
GTIN / UPC: 10845599030499
Barcode: 845599030492
2 reviews
CLEARANCE ITEM - While supplies last
Final Sale - 1-Year Manufacturer Warranty
Low profile - High Performance
Adjustable 0-90º
LED: Lumileds
Dimmable Driver
Bronze finish
Certifications Listed:
cUL, DarkSky, DLC
CSC DLC Number:
PD2ZYW4H
CSC LED Warranty:
6 Month Warranty
Product Number:
AWP02-120W-40K-347V
Light Specifications
Beam Angle:
90x120
Colour Temperature:
4000K
CRI:
83.5
Efficacy:
111.44 LM/W
Initial Lumens:
13796 lm
Life (L70):
50000
Electrical Specifications
Amperage:
1.0 A
IP Rating:
IP65
Operating Temperature:
-40°C to 40°C
Power Factor:
0.93
THD:
13.26%
Voltage:
347V
Watts:
120W
Construction Specifications
Housing:
Aluminum, Tempered Glass
Battery Specifications
Battery Type:
Test 101
Battery Capacity:
Test 101
Battery Voltage:
3.00 V
Battery Amp Hours:
3.00 Ah
Battery Recharge Time:
3 Hours
Max Discharge Time:
3 Minutes
Lamp Head Specifications
Number of Lamp Heads:
3
Lamp Head Watts:
3 W
Total Lumens:
3 lm
Lamp Input Voltage:
3.00 V
Lamp Head Material:
Test 101
Logistics
Unit Weight:
4 lbs
Unit Length:
1.0 in
Unit Width:
2.0 in
Unit Height:
3.0 in
Qty per Carton:
5
Carton Weight:
400 lbs
Carton Length:
100.0 in
Carton Width:
200.0 in
Carton Height:
300.0 in
Qty per Master Carton:
50
Master Carton Weight:
40.0 lbs
Master Carton Length:
10.0 in
Master Carton Width:
20.0 in
Master Carton Height:
30.0 in
Qty per Skid:
1000
